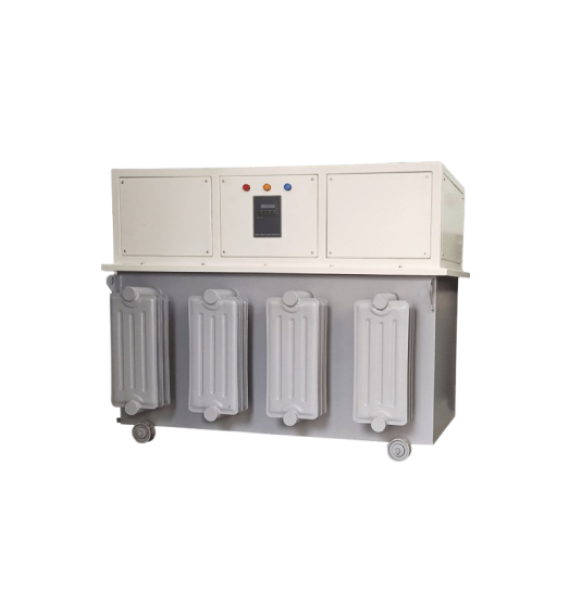

Single phase Input + Single phase Output (Air cooled)
Servo voltage stabilizers are combination of simple electronics, variable transformer (Dimmer), Buck- boost transformer and a servo motor. It is use to regulate voltage fluctuation and provide a stable desire voltage output to the system.
- Engineering Units
- CNC machinery
- Pharmaceutical units
- Air conditioning plant
- Printing & Packaging machine
- Textile mills
- Cement Plants
- Food Processing units
- Plants & Factories
Technical Specification
| Capacity | 5 kVA to 1000 kVA | ||
| Cooling System | Air Cooled | ||
| Ratings | 5 KVA to 20 KVA (1-ph + 1-ph) |
10 KVA to 100 KVA (3-ph + 3-ph) |
|
| AC Input | |||
| Input voltage | 100-300/180-280/360-460/380-480/380-500 V AC | ||
| Frequency | 50/60 Hz ± 10% | ||
| Power factor | ≥ 0.90 | ||
| AC Output | |||
| Technology | Servo Based Voltage Controlled | ||
| Output Voltage | 200/230/380/400/415 V AC | ||
| Output Frequency | 50/60 Hz ± 0.1 Hz | ||
| Dimmer | Copper wound for Individual phase | ||
| Buck Boost | Aluminum wound for Individual phase (copper wound on request) | ||
| Correction speed | >20 v/sec | ||
| Auto/Manual facility | Auto manual facility for Individual phase | ||
| Efficiency | >98% | ||
| Effect on Power factor | NIL | ||
| Response time | Less than 10 milli sec | ||
| Operated Frequency | 47 to 53 Hz | ||
| Waveform Distortion | NIL | ||
| General | |||
| Environment | 0º to 50º C & 95 % RH | ||
| Display | LCD | ||
| Protection |
| ||
| Indication |
| ||
| Metering |
| ||
